3-641215-2 TE Connectivity | PCBX Electronics

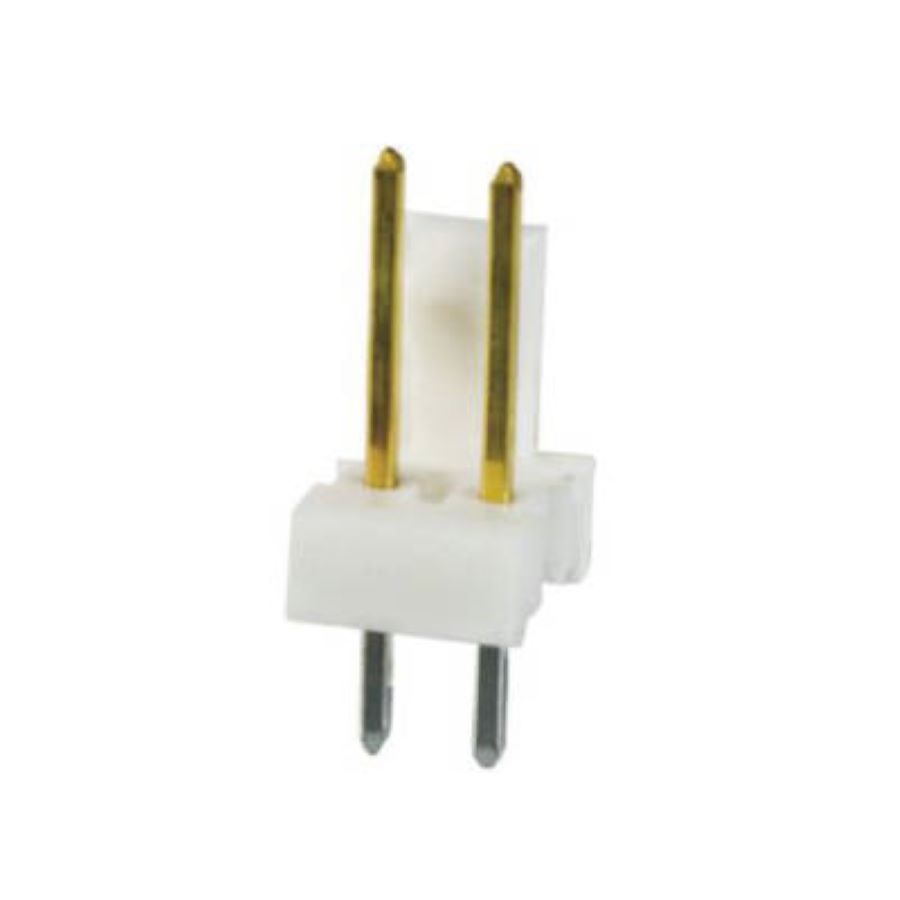

3-641215-2

Manufacturer:

TE Connectivity

Mfr.Part #:

3-641215-2

Datasheet:

Description:

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm

Parameter	Value
Length	7.62 mm
Termination	Solder
Max Operating Temperature	105 °C
Min Operating Temperature	-55 °C
Voltage Rating (AC)	250 V
Height	7.87 mm
Packaging	Bulk
Voltage Rating	250 V
Depth	5.71 mm
Lead Free	Lead Free
Radiation Hardening	No
RoHS	Compliant
Lead Pitch	2.54 mm
REACH SVHC	No SVHC
Contact Plating	Tin, Gold
Lead Length	3.56 mm
Pitch	2.54 mm
Current Rating	5 A
Flammability Rating	UL94 V-0
Approvals	CSA
Orientation	Vertical
Operating Supply Voltage	250 V
Lifecycle Status	Production (Last Updated: 1 week ago)
Color	Beige, Natural
Gender	Pin (Male)
Number of Contacts	2
ELV	Compliant
Connector Type	Header
Number of Positions	2
Number of Rows	1
Row Spacing	2.54 mm
Housing Material	Polyester
Fastening Type	Friction
Circuit Application	Signal
Connector System	Wire-to-Board
Contact Style	Straight
Contact Resistance	6 mΩ
Max Voltage Rating (AC)	250 V
Contact Current Rating	5 A
Housing Color	Natural, White
Plating	Gold
shrouded	No
Contact Mating Length	7.493 mm
PCB Mounting Orientation	Vertical
PCB Thickness	1.6002 mm
Tail Length	3.56 mm
Plating Thickness	760 nm
Contact Gender	Male
Mating Post Length	7.49 mm
Contact Shape	Square
Underplate Material	Nickel
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Sealable	No
Mating Retention	With
Contact Finish Thickness - Mating	760 nm
Termination Post Length	3.56 mm
PCB Mount Retention	Without
PCB Mount Alignment	Without
